KN Single Panel Gate

Single and double leaf gate system with 55×200mm wide-mesh Single panel infill

KN Single Panel Gate

KN Single Panel Gate; a gate system manufactured with a 60×60×2mm gate frame profile, 4mm Single panel with 55×200mm mesh aperture and polyester coating over galvanising, available in single and double leaf configurations. Customisable across 6 height options and double-leaf widths from 2000–6000mm.

Quick Specs
Gate Frame Profile60×60×2mm
Bulk QuoteWhatsAppDownload Datasheet
Quality & Certifications

Internationally accredited, certified manufacturing

  • ISO 9001:2015
    Quality Management System
  • ISO 14001:2015
    Environmental Management System
  • ISO 45001:2018
    Occupational Health & Safety Management System
  • TSE
    Turkish Standards Compliance

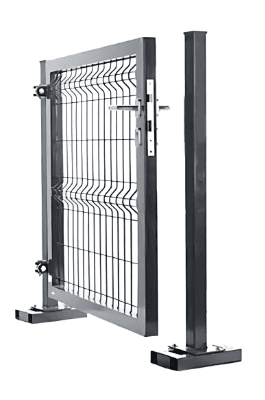

Single Leaf for Pedestrian Access
01

Single Leaf for Pedestrian Access

A single-leaf model at a fixed width of 1000 mm, produced in six heights from 1700 mm to 3010 mm. The strong 60×60×2 mm profile frame and the 4 mm Single panel infill with 55×200 mm apertures make a modern, durable pedestrian gate. The complete installation set includes base plate and post.

Production Process

Integrated production from raw material to quality control

  1. 01

    Profiles are cut and drilled on CNC machines

  2. 02

    The gate frame is joined by MIG welding

  3. 03

    The 4 mm Single panel with 55×200 mm apertures is mounted into the frame

  4. 04

    Hot-dip galvanising is applied

  5. 05

    A polyester coating over the galvanising gives two-layer protection

  6. 06

    Lock and hinges are fitted at the factory before dispatch

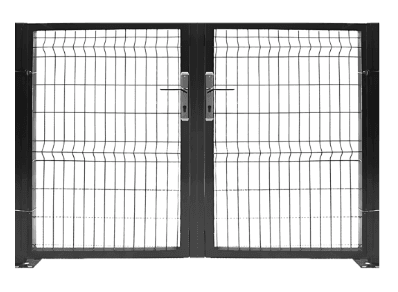

Double Leaf for Wide Openings
02

Double Leaf for Wide Openings

The double-leaf model closes wide vehicle and pedestrian crossings from 2000 mm to 6000 mm, with a symmetrical frame and a centre lock for secure closing. Because it uses the same profile and panel system, it stays visually consistent with the single-leaf model.

Use Cases

Engineered solutions for every sector

  • Garden entrances for houses and villas

  • Pedestrian and vehicle gates at factories and industrial sites

  • Entrance gates at schools, hospitals and public buildings

  • Wide openings at car parks and warehouses

  • Passage solutions integrated into panel fence systems

Dimensions & Configuration

Height, weight and recommended post spacing

Gate Profile60×60×2mm
Channel Profile40×40×1.5mm
Horizontal Rail30×20×1.5mm
Gate Panel4 mm Single, 55×200 mm aperture
Height1700 / 1900 / 2000 / 2010 / 2510 / 3010mm
Single-Leaf Width1000mm
Double-Leaf Width2000–6000mm
CoatingPolyester over galvanising
Colour & Coating

Two-layer galvanised + PVC protection

  • RAL 6005#2F4538
  • RAL 7016#293133
  • RAL 9005#0E0E10
  • Custom Colour#CCCCCC
Technical Specifications
Gate Profile60×60×2mm
Channel Profile40×40×1.5mm
Horizontal Rail30×20×1.5mm
Gate Panel4 mm Single, 55×200 mm aperture
Height1700 / 1900 / 2000 / 2010 / 2510 / 3010mm
Width (Single Leaf)1000mm
Width (Double Leaf)2000–6000mm
CoatingPolyester coating over galvanising
Detailed Description

The KN Single Panel Gate sets itself apart from other panel gate series through its use of a 55×200mm large-aperture Single panel, delivering a modern and open appearance. It is offered in two models: single leaf and double leaf.

Both models use a 60×60×2mm gate frame profile, a 40×40×1.5mm channel profile and a 30×20×1.5mm horizontal rail. Gate infill is a 4mm Single Panel with a 55×200mm mesh aperture. Six height options are available: 1700, 1900, 2000, 2010, 2510 and 3010mm.

The single leaf model has a fixed width of 1000mm; the double leaf model can be ordered in widths from 2000mm to 6000mm. Polyester coating over galvanising provides long-lasting outdoor durability.

Bulk Quote

KN Single Panel Gate

WhatsAppBulk Quote

Product Code

PRD-0037

Gates & Accessories

MANUFACTURER · FACTORY

KN Single Panel Gate Manufacturer

KN Single Panel Gate is manufactured directly by Konak Tel Çit at its factory in Aksaray; not outsourced, but produced in house from start to finish. A single-panel leaf is welded to a box-profile frame; hinges/rails, lock and closing hardware are fitted with care, then finished with galvanizing plus powder coating.

Quality assurance: production certified to ISO 9001, ISO 14001, ISO 45001 and CE; every batch is checked for weld strength, mechanism and coating.

Manufacturer Profile

Integrated factory production in Aksaray since 1972

Founded
1972
Production Sites
2
Export Reach
80+ Countries
Annual Capacity
60,000 tons
Covered Area
20,000 m²
Quality
ISO · CE · TSE
Logistics & Shipping

Nationwide shipping in Türkiye and exports to 80+ countries

  • Minimum Order
    1 piece
  • Packaging
    Palletised packaging
  • Exports
    80+ countries
SSS

Frequently Asked Questions

4 questions · technical, installation and ordering details

Both series use a 60×60×2 mm profile and a Single panel with 55×200 mm apertures. On the KN Single Panel the horizontal rail is 30×20×1.5 mm and heights reach 3010 mm. The structural profile sizes are the same; the difference lies mainly in the height range and the series naming.
Six heights are available: 1700, 1900, 2000, 2010, 2510 and 3010 mm.
The double-leaf model closes openings up to 6000 mm. The single leaf is produced at a fixed width of 1000 mm.
RAL 6005 Green, RAL 7016 Anthracite and RAL 9005 Black are available as standard. Custom RAL colours can be ordered.
