Razor Wire / Barbed Wire
Flat wrap · Concertina · Barbed wire — galvanised or stainless steel security wire
High-security razor wire and barbed wire systems manufactured from galvanised or stainless steel wire. Supplied in three types — flat wrap, concertina, and barbed wire — and preferred for factory, military facility, airport, and critical infrastructure security.
- Sheet Thickness0.50mm
Internationally accredited, certified manufacturing
- ISO 9001:2015Kalite Yönetim Sistemi
- ISO 14001:2015Çevre Yönetim Sistemi
- ISO 45001:2018İş Sağlığı ve Güvenliği Yönetim Sistemi
- CECE Uygunluk Beyanı (EN 10223-4)
- TSETürk Standardlarına Uygunluk

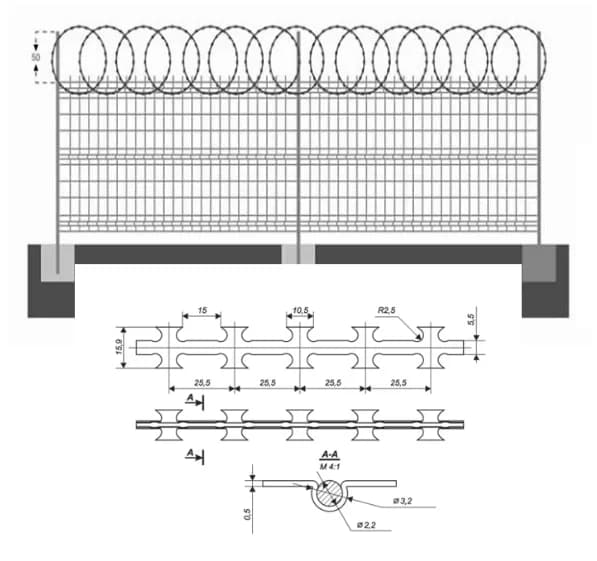

Sharp Blades, Linear Barrier
Sharp 0.50 mm blades mounted at 25.5 mm spacing along Ø2.50 mm galvanised wire form an impenetrable barrier along a straight line. Fast mounting on top of posts or walls, economical deterrence over long runs.
- Blade spacing 25.5 mm — dense cutting line
- Wire Ø2.50 mm — 1600 N/mm² tensile strength
- Sheet 0.50 mm — galvanised or 304/430 stainless
- Heights: 450 / 600 / 900 mm
Integrated production from raw material to quality control
- 01
Wire & Sheet Procurement
Ø2.50 mm galvanised or stainless steel wire and 0.50 mm sheet are sourced from suppliers conforming to EN 10244 standard.
- 02
Galvanising / Stainless Processing
Wire is galvanised with 100 or 275 g/m² zinc coating; for the stainless option, grade 304 or 430 sheet and wire are used.
- 03
Blade / Barb Forming
Sheet metal is pressed into sharp blade form on CNC presses. For barbed wire, pairs of barbs are fixed to the twisted body wire at 120° angles.
- 04
Wire Assembly
Blades are clipped and compressed onto the wire at set intervals. For the concertina type, wire is formed into Ø450 / 600 / 900 mm spiral coils.
- 05
Quality Control
Every roll is tested for blade angle, barb spacing (75±5 mm), coating thickness, and tensile strength (1600 N/mm²).

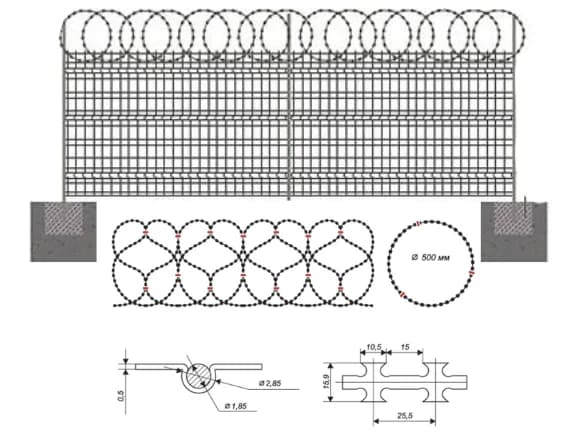

Ø450 / 600 / 900 mm Spiral: Multi-Directional Barrier
Ø450 / 600 / 900 mm spiral coils deployed on top of walls or spread across the ground close off multiple climbing and crossing angles. Same wire and sheet specification, greater coverage area.
- Coil diameter Ø450 / 600 / 900 mm — wide coverage area
- Wall-top or ground-barrier application
- Blade spacing 25.5 mm — dense cutting line
- Heights: 450 / 600 / 900 mm
Engineered solutions for every sector
Military & Critical Infrastructure
A deterrent security line for military facilities, prisons, airports, and border crossings that makes unauthorised passage physically impossible.
Industrial & Logistics
Reinforces the perimeter security of factories, Organised Industrial Zones (OIZs), warehouses, and energy facilities as an additional barrier on top of panel fence or chain-link.
Residential & Housing Estate Security
An additional security layer on top of estate walls or fences; a powerful deterrent against burglary attempts.
Border & Export
Razor wire systems to international standards for border security lines and export projects.
Agriculture & Land
Barbed wire as a low-cost, maintenance-free security reinforcement on field and land boundaries.

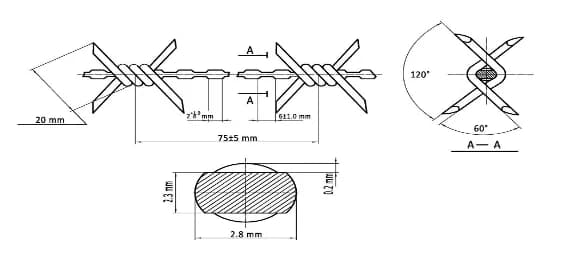

120° Barbs, 75 mm Spacing
Pairs of barbs mounted at 75±5 mm spacing at 120° angles on a twisted double-strand body wire offer a broad range of applications from agricultural land perimeter fencing to industrial security. Two standard types: Metric and Conventional.
- Metric: Body Ø1.70 mm · Barb Ø1.50 mm
- Conventional: Body Ø2.50 mm · Barb Ø2.00 mm
- Barb spacing 75±5 mm — double barb at 120°
- Galvanised steel — 100 / 275 g/m²
Height, weight and recommended post spacing
| Height (mm) | Weight (kg/panel) | Panel Width (mm) | Recommended Post Spacing (mm) |
|---|---|---|---|
| 450 | 1.8 | 1000 | 3000 |
| 600 | 2.4 | 1000 | 3000 |
| 900 | 3.6 | 1000 | 3000 |
Two-layer galvanised + PVC protection
- Galvaniz#b8b8b8Galvanised only
- Paslanmaz#d0d0d0Galvanised only
| Tipler | Düzlemsel Jiletli Tel / Helezon Jiletli Tel / Dikenli Tel |
|---|---|

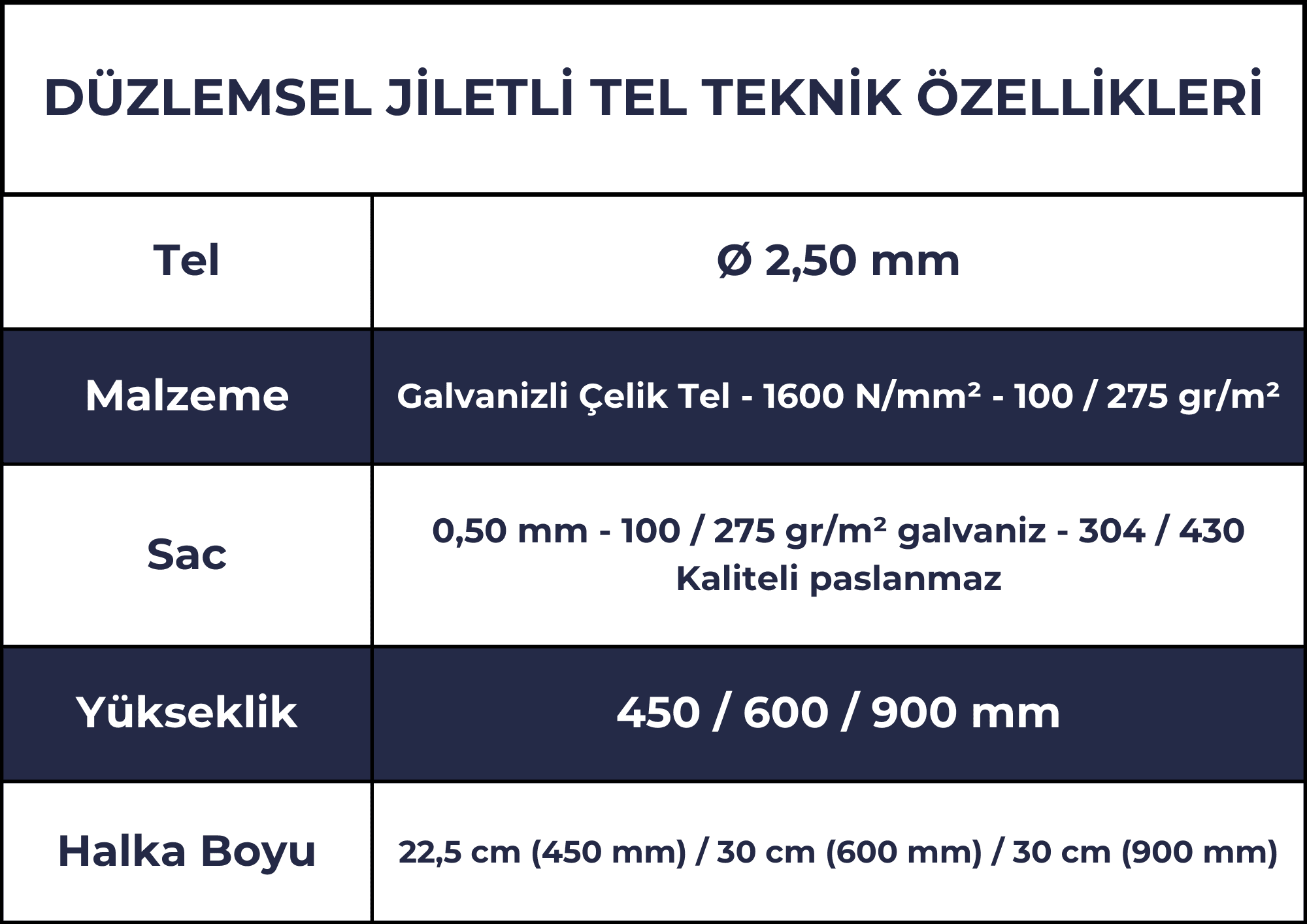

| Tel Çapı (Jiletli) | Ø 2,50 mm |
| Sac Kalınlığı | 0,50 mm |
| Jilet Profili | 36±1 / 22±1 / 15±1 mm |
| Çekme Dayanımı | 1600 N/mm² |
| Galvaniz Kalitesi | 100 / 275 gr/m² |
| Malzeme Seçeneği | Galvanizli çelik veya 304/430 paslanmaz çelik |
| Jiletli Tel Yüksekliği | 450 / 600 / 900 mm |

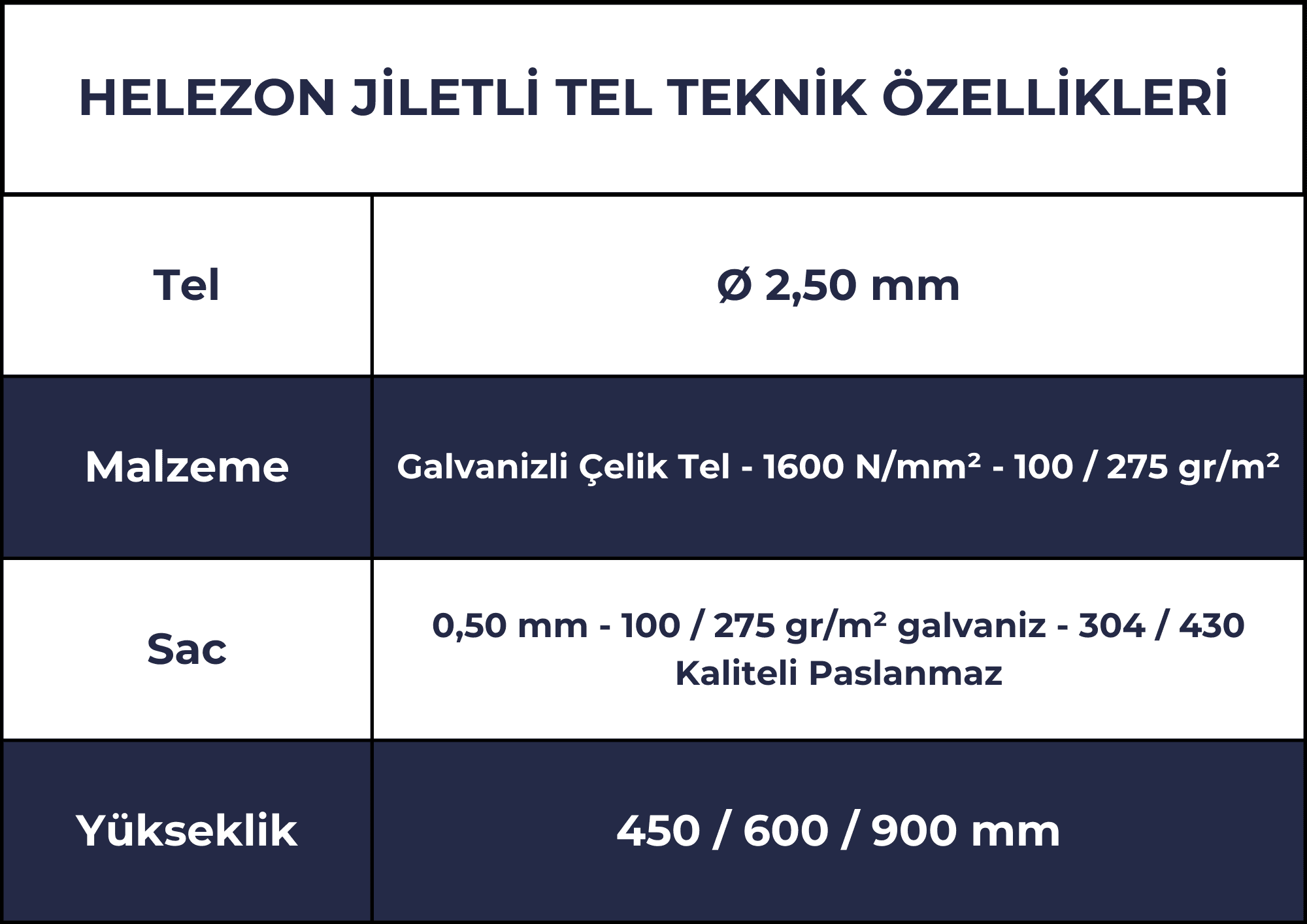

| Helezon Halka Çapı | Ø 450 / 600 / 900 mm |
| Dikenli Tel – Metrik Tip | Gövde Ø1,70 mm · Diken Ø1,50 mm |
| Dikenli Tel – Konvansiyonel | Gövde Ø2,50 mm · Diken Ø2,00 mm |
| Diken Aralığı | 75 ± 5 mm |
What Is Razor Wire / Barbed Wire?
Razor wire is a high-deterrent security wire system produced by fixing sharp blade-shaped sheet-metal clips (razors) to galvanised or stainless steel wire. Barbed wire consists of sharp barbs placed at regular intervals along a twisted double-strand wire body. Both systems are used to deter unauthorised access attempts and to reinforce security perimeters.
Type Options
- Flat Wrap Razor Wire: Blades along a single straight line; for horizontal mounting on top of posts or walls. Heights: 450 / 600 / 900 mm.
- Concertina Razor Wire: Ø450 / 600 / 900 mm spiral coils; placed on top of walls or spread across the ground to create an additional barrier. Heights: 450 / 600 / 900 mm.
- Barbed Wire: Two standards — Metric type (Ø1.70/1.50 mm) and Conventional type (Ø2.50/2.00 mm). Barbs are positioned at 75±5 mm spacing at 120° angles.
Material Options
- Galvanised Steel Wire: 100 or 275 g/m² zinc coating; economical and long-lasting for standard outdoor applications.
- 304 / 430 Stainless Steel: For coastal, marine, or high-corrosion-risk environments; chemical plants and high-security facilities.
Advantages
- High deterrence — makes physical contact immediately hazardous
- Three types — options to suit different security levels and installation scenarios
- Two materials — galvanised or stainless, a solution for every environment
- Quick installation — easily added to an existing fence or wall
- Low cost — an economical perimeter reinforcement for high security
- Maintenance-free — resistant to corrosion and weathering
All three types are available from stock or to order in galvanised or stainless steel and in all sizes. Contact us for bulk project pricing.
Ürün Kodu
PRD-0060
Çit
Razor Wire / Barbed Wire Manufacturer
Razor Wire / Barbed Wire is manufactured directly by Konak Tel Çit at its factory in Aksaray — not outsourced, but produced in house from start to finish. Galvanized or stainless razor tape is formed helically or flat around a steel core wire; on barbed wire, evenly spaced double-twist barbs are produced.
Quality assurance: production certified to ISO 9001, ISO 14001, ISO 45001 and CE; every batch is checked for barb/blade spacing and galvanized coating.
Integrated factory production in Aksaray since 1972
- Founded
- 1972
- Production Sites
- 2
- Export Reach
- 80+ Countries
- Annual Capacity
- 60,000 tons
- Covered Area
- 20,000 m²
- Quality
- ISO · CE · TSE
Nationwide shipping in Türkiye and exports to 80+ countries
- Panels per Pallet100
- Pallets per Container20
- Lead Time (days)5–10
- Exports80+ countries
