Sports Facility Clamp-Fit Fence
Complete sports facility perimeter fence with clamp connection system and ground surface options
Sports Facility Clamp-Fit Fence; a comprehensive court fencing solution erected with a clamp connection system to enclose basketball, football, tennis and volleyball courts, offered with a choice of natural turf or acrylic surface.
Internationally accredited, certified manufacturing
- ISO 9001:2015Quality Management System
- ISO 14001:2015Environmental Management System
- ISO 45001:2018Occupational Health & Safety Management System
- CECE Declaration of Conformity (EN 10223-4)
- TSETurkish Standards Compliance

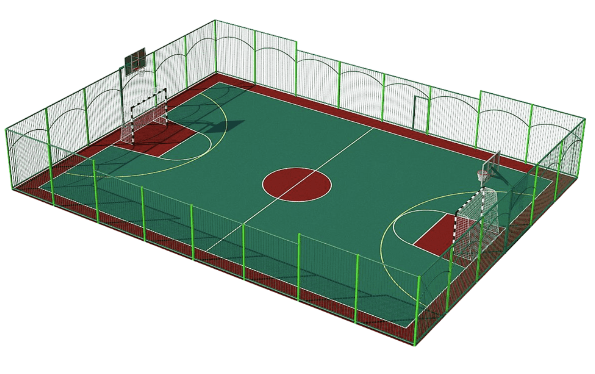

Full-Court Perimeter Fence System
Designed to the dimensions of basketball, football, tennis and volleyball courts, this clamp-fixed perimeter fence adapts to site-specific geometries through corner, T and cross clamp connections. Powder coating over galvanising gives long-lasting perimeter security that stands up to outdoor conditions.
Integrated production from raw material to quality control
- 01
Posts and profiles are cut on CNC machines to the dimensions of each court
- 02
Clamp fittings pass factory quality control
- 03
Galvanised coating provides corrosion protection
- 04
Electrostatic powder coating is applied in RAL colours
- 05
The acrylic surface is laid on site in layers by a specialist crew

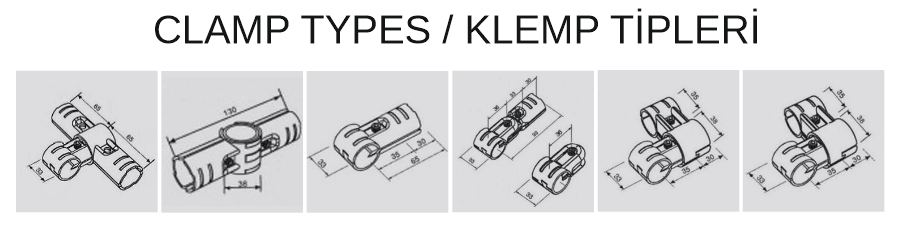

Six Clamp Types
Six clamp types, among them T, cross, corner and straight connectors, provide a suitable joint at every point where posts and profiles meet. Because the clamp system needs no welding, installation takes less time and the structure can be dismantled and moved when required.
Engineered solutions for every sector
Perimeter fencing for basketball and futsal courts
Clamp-fixed cage systems for tennis courts
Perimeter fencing for volleyball and handball courts
School and university sports complexes
Municipal and indoor sports facilities

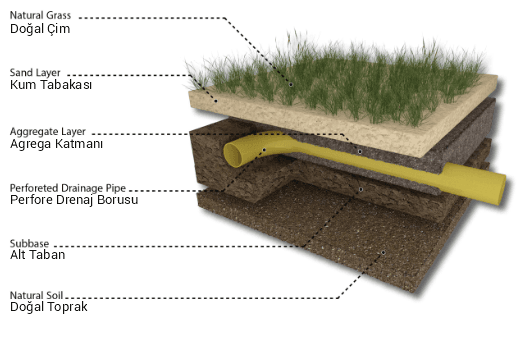

Natural Turf: Layered Drainage
Over natural ground, a multi-layer build-up of sub-base, perforated drainage pipe, aggregate layer and sand course carries rainwater away quickly and keeps the ground intact. The natural turf surface gives players a natural playing area that supports their performance.
Height, weight and recommended post spacing
| Connection System | Clamp |
|---|---|
| Clamp Types | T / cross / corner / straight and other types |
| Surface Option 1: Layers | Natural turf / sand course / aggregate layer / perforated drainage pipe / sub-base / natural ground |
| Surface Option 2: Layers | UV top coat / 100% acrylic undercoat / graded quartz colour coat / 100% acrylic cushion coat / asphalt or concrete |
| Coating | Galvanised + powder coating |
Two-layer galvanised + PVC protection
- RAL 6005#2F4538
- RAL 7016#293133
- RAL 9005#0E0E10
- Custom Colour#CCCCCC
| Connection System | Clamp |
|---|---|
| Clamp Types | T / cross / corner / straight and other types |
| Surface Option 1 | Natural turf (sand + aggregate + drainage layers) |
| Surface Option 2 | Acrylic surface (cushion coat + UV, over asphalt or concrete) |
| Use | Basketball, football, tennis and volleyball courts |
| Coating | Galvanised + powder coating |
The Sports Facility Clamp-Fit Fence is a specialist system designed to enclose outdoor sports courts safely and attractively. Instead of conventional welded joints, clamp connection elements are used to install the system to court-specific dimensions; this accelerates installation and allows the system to be dismantled and re-erected easily when required.
Clamp types are available in 6 different configurations: T-junction, cross, corner and straight connections. Each type allows posts and horizontal profiles to be joined at different angles and points, and this variety enables court-specific geometries to be created with ease.

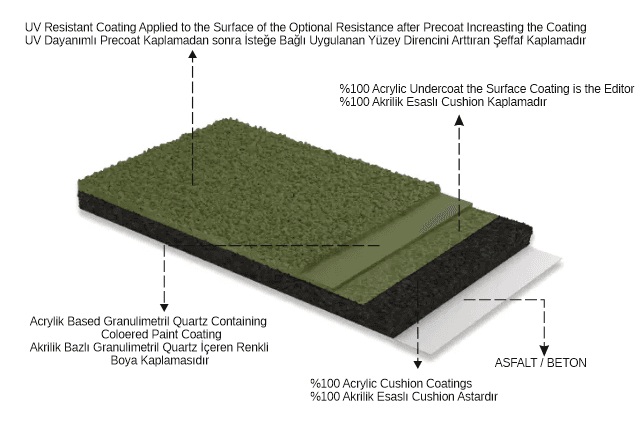

Two ground surface options are offered: Natural Turf surfaces are constructed over natural soil by laying a sub-base, perforated drainage pipe, aggregate layer and sand layer in sequence. Acrylic Surface courts are completed on an asphalt or concrete base with a 100% acrylic cushion coat, coloured paint containing granulometric quartz and a UV-resistant clear top coat. The acrylic system delivers a stable, coloured playing surface in all weather conditions.
Product Code
PRD-0040
Sports Facilities
Sports Facility Clamp-Fit Fence Manufacturer
Sports Facility Clamp-Fit Fence is manufactured directly by Konak Tel Çit at its factory in Aksaray; not outsourced, but produced in house from start to finish. Tall panels and posts are assembled with clamp connections; the galvanized, powder-coated finish withstands ball impact and the elements.
Quality assurance: production certified to ISO 9001, ISO 14001, ISO 45001 and CE; every batch is checked for panel dimensions, clamp connection and coating.
